Transparent LED Display

Glass-friendly transparent LED screens for storefronts, atriums, facades and architectural media.

Get a Factory Quote Back to Catalog

Product Detail Images & Structure

Detail photos from the 2026 product catalog help buyers check cabinet structure, installation method, maintenance access and real application scenes before quotation.

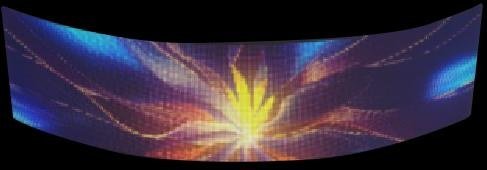

Holographic transparent film effect

M Series transparent film supports curved and glass-friendly display surfaces while keeping the space behind the glass visible.

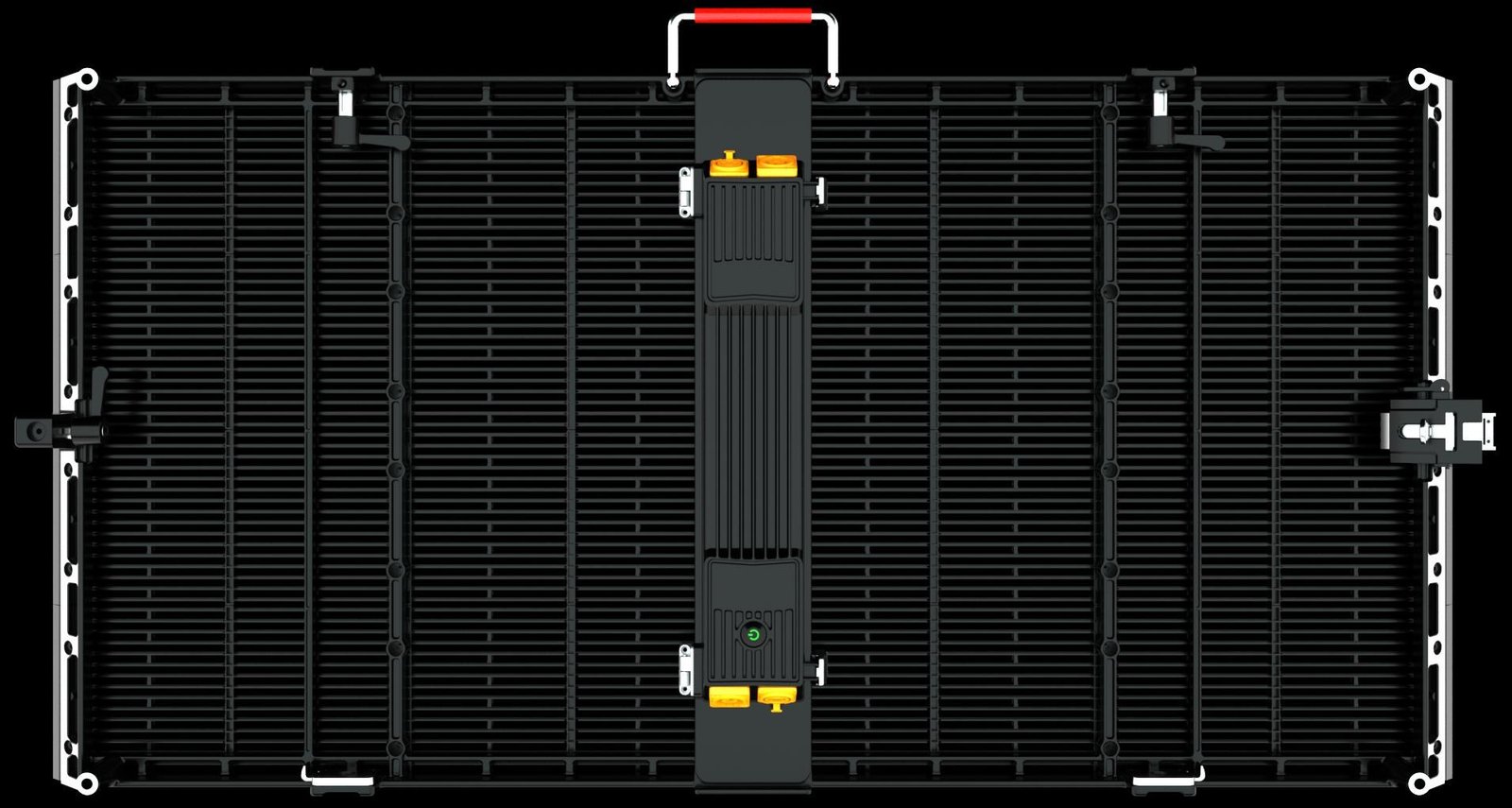

Outdoor transparent cabinet

G Series outdoor transparent cabinets combine brightness, permeability and IP-rated structure for facade and exterior glass projects.

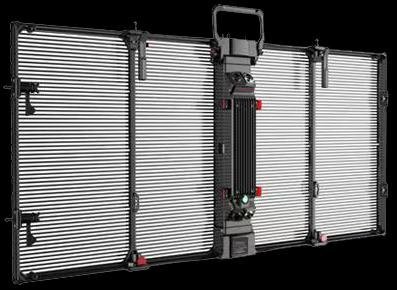

Indoor transparent cabinet structure

Indoor G Series cabinets are designed for shopping centers, atriums and window displays where transparency and maintenance access both matter.

Available Series & Pixel Pitch

Compare the catalog series, verified pixel pitch options and buyer scenarios this product family is best suited for.

M Series holographic film

P3.91 / P6.25 / P10

Ultra-light transparent film with 80-93% transmittance, less than 1.8 mm thickness, 4.5-6 kg/m2 weight and >3840 Hz refresh.

G Series outdoor

P3.9-7.8 / P5.2-10.4 / P4.2-10 / P15.6

Outdoor transparent screen with 53-71% transparency, 4500-5500 cd/m2 brightness, 7.5 kg/m2 weight and IP65 protection.

G Series indoor

P2.84 / P3.91 / P7.81 / P10.42 / P15.625 / P20

Indoor transparent LED screen with 1000×500 mm cabinets, 3500-4500 nits brightness and 56-85% permeability range.

Key Specifications

Transparency	80% / 90% / 93% options for M Series
Film thickness	Less than 1.8 mm for holographic film
Weight	Approx. 4.5-6 kg/m2 for M Series film
Brightness	M Series <=3000 cd/m2; outdoor G Series >=4500-5500 cd/m2; indoor G Series >=3500-4500 nits
Protection	Outdoor G Series IP65; indoor G Series IP30/IP41 options
Cabinet format	Outdoor G Series 1000x500x80 mm; indoor G Series 1000×500 mm
Control and service	Outdoor G Series supports Wi-Fi, DVI, HDMI, DP, USB, RJ45 and network remote control with front/rear maintenance

Recommended Applications

Retail windowsShopping mallsGlass facadesAirport and transit retailAtrium media walls

Quotation Checklist

What to send for an accurate Transparent LED Display quote

A precise factory quotation depends on project size, viewing distance and installation conditions. Share these details and our team can recommend a realistic pitch, cabinet layout, brightness and spare parts plan.

Screen width and height, or available installation drawings
Indoor/outdoor environment, viewing distance and target brightness
Fixed, rental, hanging, wall-mounted, floor or custom structure
Delivery country, project deadline and required certificates
Photos or video of the installation site when available
