LED Display Power Consumption: A Guide for B2B Buyers

You get two LED display quotes. One says “maximum power,” the other says “average power,” and neither tells your electrical contractor how many circuits to prepare. Sound familiar? For B2B buyers, LED display power consumption is not just a line on a specification sheet. It affects the distribution board, cable routes, cooling, operating cost, and whether the screen can run reliably on opening day. The good news is that you do not need to become an electrical engineer. You just need the right numbers, a simple calculation, and a supplier who can explain how the load is divided.

Why one power number is not enough

Most LED display projects involve at least two useful figures: maximum power consumption and typical power consumption. They answer different questions.

• Maximum power consumption is the upper design value. Your electrical team uses it to review capacity, circuit allocation, cable sizing, and protection.
• Typical power consumption estimates normal operation under stated brightness and content conditions. It is more useful for budgeting energy use and cooling.

Do not treat “average” as a universal constant. A bright outdoor white screen, a dim indoor presentation, and mixed video content can draw very different loads. Ask what brightness level, image content, cabinet configuration, and test method were used for the supplier’s typical figure.

How to estimate LED display power consumption

Start with the display area, then multiply it by the supplier’s confirmed watts-per-square-meter value for the exact product configuration.

Screen area (m²) = width × height
Estimated load (W) = screen area × power consumption (W/m²)

Here is an illustrative example. An 8-meter-wide by 4-meter-high display has an area of 32 m². If the confirmed maximum figure is 700 W/m², the estimated maximum screen load is 22,400 W, or 22.4 kW. If the supplier’s stated typical figure is 280 W/m² under your planned operating conditions, the typical screen demand is about 8.96 kW.

Those figures are examples, not product promises. Use the values for your selected cabinet, power supply, voltage, brightness setting, and control configuration. Also add the loads that sit outside the LED cabinets, such as control equipment, networking, ventilation, air conditioning, lighting, and service outlets.

Turn the total load into a usable distribution plan

A total kilowatt figure is only the starting point. Your supplier should also show how cabinets are grouped into power circuits. That circuit map helps the electrical contractor understand where feeds enter the display, how loads are balanced, and which section is affected if one circuit is isolated.

Confirm the project voltage and frequency first. Then ask for the number of feeds, phase arrangement when applicable, connector type, entry locations, cabinet-to-cabinet linking limits, and the proposed distribution-box location. If the screen is part of a critical venue, discuss whether separate power zones, spare capacity, or a defined recovery plan is appropriate. Final circuit protection, conductor sizing, grounding, and code compliance should always be approved by a qualified local electrical professional.

This is also where your LED display installation site checklist becomes useful. Power entry, service access, control-cable routes, and structural space need to work together. Solving them in separate conversations usually creates late changes.

Do not forget cooling and operating conditions

Electrical energy used by the display ultimately adds heat to the installation environment. For an enclosed indoor wall or a sealed outdoor structure, that heat can affect ventilation or air-conditioning decisions. Ask the supplier for expected typical and maximum heat load assumptions, then let the project’s mechanical engineer decide how the space should be cooled.

Operating conditions matter too. A screen that runs twelve hours a day at moderate brightness has a different energy profile from a screen that runs short, high-brightness event content. Include expected daily hours, content type, ambient temperature, target brightness, and any automatic brightness-control plan in your LED display project brief.

Documents to request before approving the order

• A power sheet for the exact LED module, cabinet, power supply, and voltage configuration
• Maximum and typical consumption per cabinet and for the complete screen
• The assumptions behind the typical-consumption figure
• A cabinet layout with power-circuit groups and feed locations
• A preliminary single-line distribution diagram for contractor review
• Connector types, cable quantities, and cabinet linking limits
• Control-system and auxiliary-equipment power requirements

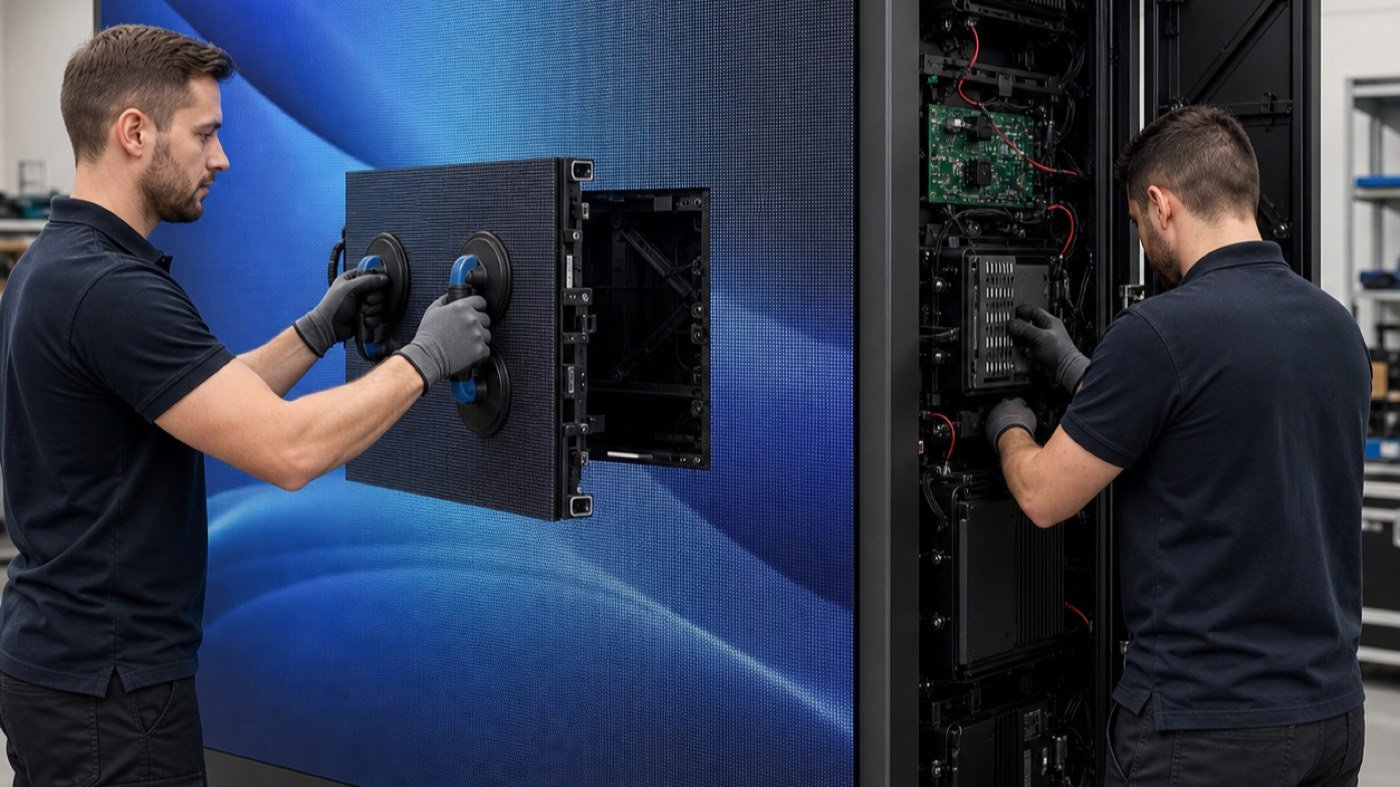

• Service-access clearances around power supplies and distribution equipment

Make these documents part of the technical approval package, not an afterthought after production. Our guide to comparing the real cost behind an LED display quote explains why missing electrical scope can make a low quote look better than it really is.

Red flags in a supplier’s power information

• The quote shows only one “average” number with no test conditions.
• Power data is copied from a different cabinet or pixel-pitch model.
• The supplier gives total kW but cannot provide a circuit or cabinet grouping.
• Voltage, frequency, connectors, or local plug requirements are still “to be confirmed” after technical approval.
• Control equipment, cooling, and service outlets are excluded without being identified.
• The proposed layout leaves no practical access to power supplies or distribution boxes.

These issues do not automatically mean the product is wrong. They do mean the project is not ready for final approval. Clarifying the details now is cheaper than changing a distribution board, adding cable, or reopening a finished wall later. It also supports a more realistic plan for long-term LED display maintenance costs.

A quick buyer approval checklist

1. Confirm screen dimensions and total cabinet count.
2. Get maximum and typical power figures for the exact configuration.
3. Add controllers, networking, cooling, lighting, and service outlets.
4. Review circuit groups, feed locations, and service access.
5. Share the supplier diagram with the local electrical and mechanical teams.
6. Record approved values and drawings in the purchase specification.
7. Verify the supplied configuration during pre-shipment inspection.

The last step matters because a changed power supply or cabinet layout can change the project load. Add the approved configuration to your LED display pre-shipment checklist so the delivered system matches the electrical plan.

Plan the power before you lock the screen specification

LED display power planning is much easier when the buyer, supplier, electrical contractor, and mechanical team are working from the same cabinet layout. Get the maximum load for infrastructure, the typical demand for operating estimates, and a circuit map that connects the numbers to the physical screen. That is the practical difference between having a power figure and having a power plan.

For a project-specific review, send us your screen width, height, indoor or outdoor location, local voltage, operating hours, and target brightness. We can use those details to prepare a clearer LED display configuration and power-information package for your contractor to review.

Worked Power Example for a 12.96 m² Screen

This example uses 800 W/m² maximum and 280 W/m² typical average power. Replace both values with the confirmed figures for your delivered configuration.

Example electrical and operating estimate

Item	Calculation	Example result	Use in planning
Screen area	4.8 m x 2.7 m	12.96 m²	Base for both power figures.
Maximum load	12.96 x 800 W/m²	10.37 kW	Size distribution and protection from this value.
Average load	12.96 x 280 W/m²	3.63 kW	Use for a realistic energy estimate.
Eight-hour energy	3.63 kW x 8 h	29.0 kWh	Multiply by local tariff for daily cost.
20% design margin	10.37 kW x 1.2	12.44 kW	Discuss final headroom with a qualified electrician.
