An outdoor LED display quote says IP65, so the cabinet is ready for any weather, right? Not quite. The number may apply to one side of the cabinet, one test sample, or one enclosure condition. It also does not tell you whether cable entries, service doors, drainage, installation gaps, and field maintenance will preserve that protection. For a buyer, the real job is to turn an LED display IP rating into a clear, verifiable project requirement.
This guide explains what to compare before ordering, which documents and details to request, and what to inspect before an outdoor screen leaves the factory.
What an LED Display IP Rating Tells You
IP classifications describe how an enclosure protects against access, solid objects, and water under defined test conditions. The system is covered by IEC 60529. The first digit relates to solid-object protection, while the second relates to water protection.
That definition is useful, but buyers should avoid treating the code as a complete outdoor-performance guarantee. An LED display is an assembled system with modules, cabinet joints, rear doors, fans or vents when used, power and signal connectors, mounting hardware, and site cabling. Your purchase decision has to cover how those parts work together.
Confirm Which Side of the Cabinet Is Rated
The front and rear of an outdoor cabinet do not always have the same exposure or construction. A screen mounted against a sealed wall may face different risks from a freestanding roadside display. Ask the supplier to state the claimed protection for the front and rear separately, in writing.
| Buyer question | Why it matters | Evidence to request |
|---|---|---|
| Does the rating cover the front, rear, or both? | Rain and dust can reach each side differently. | Side-specific specification and enclosure drawing |
| Was a complete cabinet evaluated? | A module result may not represent the assembled enclosure. | Test scope, sample description, and report reference |
| Which connectors and covers were installed? | Open or mismatched entries can change protection. | Photos and approved connector list |
| What mounting condition was used? | Orientation and joints affect water paths. | Installation notes and test configuration |
| Are service doors included? | Gaskets and latches are common maintenance points. | Door detail, gasket material, and inspection steps |
Look Beyond the Number at Cabinet Construction
A strong RFQ asks how the cabinet manages real exposure. Review the perimeter gasket, module interfaces, connector covers, cable glands, door compression, fastener locations, and the bottom edge where water may collect. If the design includes vents, fans, filters, or heat-management paths, ask how those features fit the stated enclosure protection.
Drainage deserves its own line in the discussion. Water that reaches a joint or service area should not be trapped around electronics. Ask where it is expected to exit and whether the installed angle or support structure could block that path. This should connect with your broader LED display installation site checklist.
Match the Requirement to the Real Site
Do not choose an enclosure requirement in isolation. Give the supplier the screen location, mounting orientation, roof or canopy details, prevailing exposure, cleaning method, access side, nearby irrigation or spray, and whether the rear is enclosed. A coastal, dusty, shaded, or high-traffic site may create different maintenance priorities even when the same headline code appears on two quotes.
This is one reason an experienced outdoor LED display supplier should ask site questions before finalizing the cabinet. If a quote jumps straight to a rating without clarifying the installation, the buyer still has work to do.
Ask for Traceable Test Evidence
A certificate image by itself may not show what was tested. Request the report issuer, report number, tested model or sample, stated result, date, and photos or drawings that identify the enclosure. Compare the tested construction with the product on your quotation. If the cabinet, door, connector, or module design has changed, ask whether the existing evidence still represents the offered version.
The goal is not to collect paperwork for its own sake. It is to avoid approving one construction while receiving another. Add the agreed details to your LED display project brief and purchase specification.
Inspect Weather-Protection Details Before Shipment

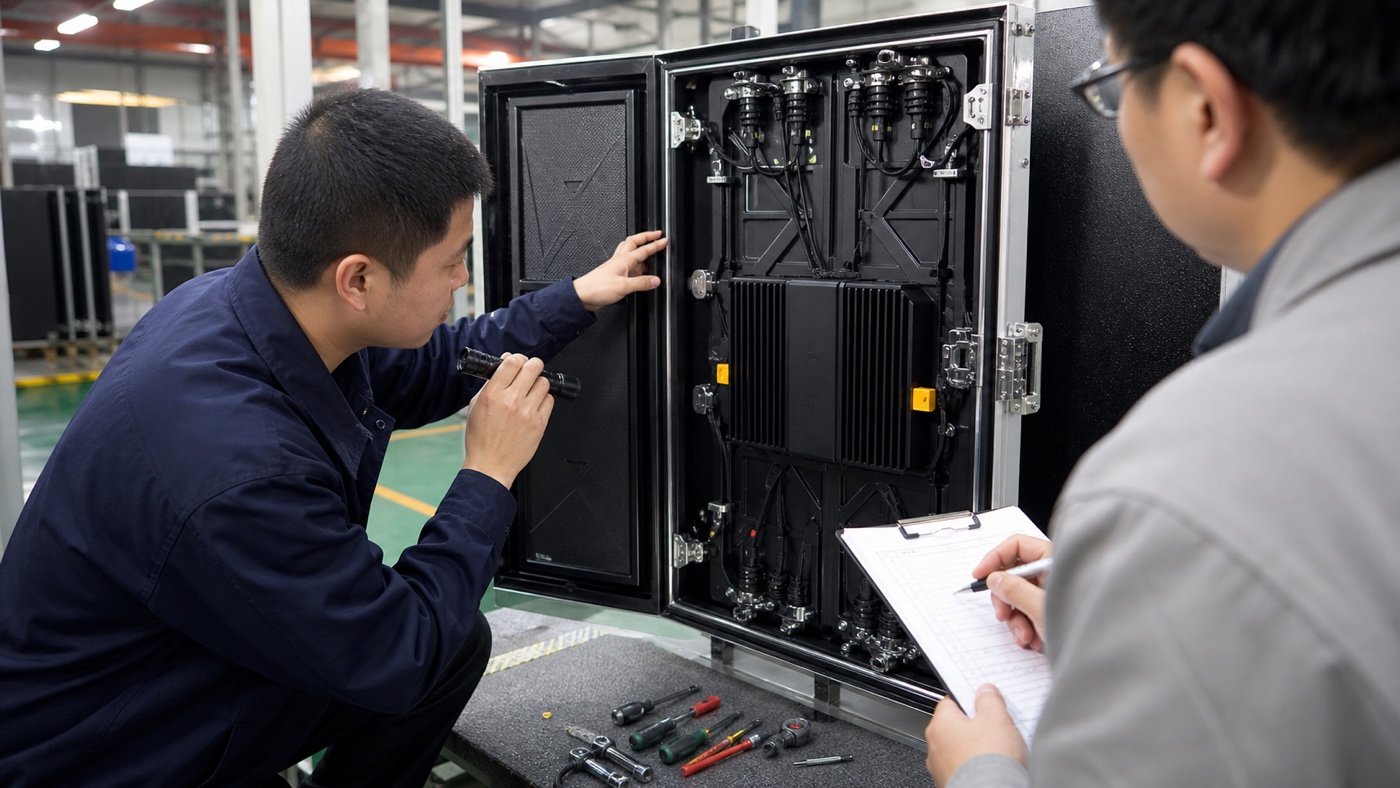

During pre-shipment inspection, open a representative cabinet and compare it with the approved drawings and sample. You are not replacing a formal enclosure test. You are checking whether the production units contain the details that support the agreed design.
- Check that gaskets are continuous, seated evenly, and not pinched.
- Confirm service doors close with consistent compression.
- Verify unused connector positions have the approved covers.
- Review cable entries and gland sizes against the project cable plan.
- Inspect lower edges and drainage paths for blockage.
- Compare fasteners, hinges, latches, and rear covers with the approved sample.
- Record photos of front, rear, joints, connectors, and the cabinet label.
Include these points in your broader pre-shipment quality checklist. If the screen will travel a long distance, also confirm that LED display packaging protects gaskets, connector covers, and cabinet edges from deformation.
Plan Maintenance That Preserves the Enclosure
Weather protection can be reduced after delivery if a technician leaves a cover loose, damages a gasket, uses the wrong cable gland, or closes a door on trapped wiring. Ask for service instructions that identify inspection points, approved replacement parts, closure sequence, and gasket-care expectations.
Keep spare covers, seals, and other project-specific weather-protection parts when the design calls for them. After service work, include a visual closure check in the maintenance record instead of assuming the cabinet returned to its original condition.
Red Flags in an Outdoor LED Display Quote
- The quote lists one IP code without identifying front or rear.
- The supplier cannot describe the tested sample or report scope.
- Connectors in the quotation differ from the tested or approved design.
- There is no drawing for cable entry, service access, or drainage.
- The rating is used as a substitute for discussing the actual site.
- Maintenance instructions do not cover seals, doors, and connector caps.
The Buyer Takeaway
An LED display IP rating is a starting point for comparison, not the end of the outdoor-screen conversation. Define the exposed sides, match the enclosure to the site, review traceable evidence, inspect production details, and protect the design through installation and maintenance.
