LED Display Signal Distance: When Should Buyers Use Fiber?

For an LED display, use direct copper data cable only when every installed run stays within the controller manufacturer’s approved distance and the route is protected from electrical noise, repeated connectors, moisture, and physical damage. Use fiber when the control position is far from the screen, the cable leaves a building, the route passes electrically noisy equipment, or primary and backup paths need physical separation.

The shortcut “copper below 100 metres, fiber above 100 metres” is useful for early planning, but it is not a final design rule. The real limit depends on the sending device, receiving system, cable category, connector count, termination quality, routing environment, and redundancy plan. Buyers should approve the complete signal path and its acceptance test—not just a cable label.

Copper or fiber: what is the practical answer?

This is a selection guide, not a substitute for the proposed equipment manuals. A controller with optical outputs, a separate fiber converter, and a generic network media converter are not automatically equivalent.

What does “LED display signal distance” include?

LED display signal distance is the installed path between the sending device and the receiving system at the screen. It may include a processor, sender, patch panels, copper jumpers, fiber converters, optical modules, field cable, couplers, and the first receiving cabinet.

Keep three links separate:

• Source to processor: HDMI, DisplayPort, SDI, or another video input.
• Processor or sender to LED receiving system: often manufacturer-specific data over Ethernet-type ports or optical ports.
• Cabinet-to-cabinet distribution: short data jumpers that follow the cabinet map.

A video source can reach the processor perfectly while the LED data link remains unreliable. Likewise, a long fiber backbone can be healthy while a damaged cabinet jumper creates intermittent rows or cabinet dropouts. A useful signal drawing names every link, connector, conversion stage, and powered device.

If the project has several sources, first use the LED display video processor inputs checklist to separate input-format questions from display-data transport.

Is 100 metres a safe copper limit for an LED wall?

Treat 100 metres as an outer planning boundary for a standards-based copper channel, not a promise that any LED controller will work over any 100-metre cable. Leviton’s current extended-distance guide summarizes the structured-cabling model as a 90 m permanent link and a 100 m channel including patch cords and connectors. That model assumes compliant components and installation practice.

An LED control link may impose a shorter product-specific limit. Extra couplers, thin patch leads, tight bends, poor field plugs, moisture, and routes beside motors or power conductors can reduce margin before the nominal distance is reached. Ask the controller or receiving-system supplier for the maximum supported installed channel, approved cable category and shielding, and allowed connector count.

For a route near the limit, do not buy on length alone. Require a cable certification result and a full-load display test through the final route. If the design needs an undocumented extender to make the copper run work, fiber is usually the clearer procurement choice.

When should a buyer specify fiber?

The route exceeds the approved copper distance

Fiber is the normal answer when the sender-to-screen distance is beyond the documented copper limit. NovaStar’s MX40 Pro manual, for example, shows Ethernet output for a local application and optical ports with a fiber converter for long-distance transmission. This illustrates the architecture; it does not make one model’s optical capability universal.

The route crosses an electrically noisy environment

Fiber carries optical rather than electrical signals along the cable, so it can remove the long conductive data path between locations. That is valuable near motors, generators, dimmer racks, elevators, broadcast power, or industrial equipment. The converters and their power supplies remain electrical devices, so grounding, enclosure, heat, and surge responsibilities still need an engineer or qualified installer.

The screen is outdoors or in another building

For an outdoor LED billboard, the signal route may cross ground, poles, roof spaces, or separate electrical zones. Fiber can reduce problems associated with a long conductive data cable, but it does not make the installation weatherproof. Buyers still need a defined conduit, pull method, bend control, enclosure entry, drainage, lightning/surge strategy, and local approval.

The event route must be moved and rebuilt

Rental systems benefit from long, repeatable trunk cables, but touring fiber needs suitable jackets, strain relief, connector protection, reels, and cleaning discipline. A fragile office patch lead is not a touring solution. For an event project, combine the transport plan with the rental LED screen planning guide and state who owns, tests, and replaces the cable set.

Redundancy requires a genuinely separate path

Two cables in the same crushed conduit are not independent. Where continuity matters, specify the primary and backup path, physical separation, converter power, optical ports, and changeover behavior together. The LED display control-system redundancy guide explains why duplicated hardware only helps when shared failure points are removed.

How far can LED display fiber run?

There is no single fiber distance for all LED display systems. The result depends on fiber type, optical module, wavelength, connector loss, splice count, cleanliness, and the exact transmitter/receiver pair.

As a product-specific example, NovaStar’s CVT10 Pro specification lists up to 300 m for its multimode version using OM3/OM4 twin-core fiber and up to 10 km for its single-mode version using OS1/OS2 twin-core fiber. Those figures belong to that documented configuration. They should not be copied into an RFQ for a different converter or third-party module.

Ask for these items as one matched set:

• converter or controller model at each end;
• optical-module model and approved wavelength;
• single-mode or multimode fiber;
• core count and whether primary/backup use separate cores or routes;
• connector type, polish, couplers, and splice quantity;
• maximum supported distance and optical-loss allowance;
• indoor, outdoor, armored, or tactical cable construction;
• converter power, mounting, ventilation, and environmental limits.

Do not mix a single-mode module with multimode cable because the connectors appear to fit. Do not accept “10 km fiber” without a named transmitter, receiver, fiber type, and loss budget.

Where should fiber converters be installed?

Place converters where they can be powered, ventilated, protected, identified, and serviced. A converter hidden inside an inaccessible steel structure may shorten the copper tail, but it makes fault isolation and replacement difficult.

Near the LED wall, provide:

1. a dry or correctly rated enclosure for the actual environment;
2. stable power and a clear restart sequence;
3. strain relief and bend-radius control for the fiber;
4. short, labeled copper runs to the correct sender or cabinet ports;
5. access to status indicators without dismantling the display;
6. space for the spare converter or optical module when uptime matters.

The manufacturer should document compatible control equipment. The integrator should design the route and labeling. The electrician handles power work within local rules, and the site owner should approve access and maintenance boundaries. These responsibilities belong in the quotation.

What topology should appear in the RFQ?

Do not ask only, “Does the screen support fiber?” Give every bidder the same route information.

Also state the final pixel map and loaded output ports. Signal distance is only useful when the proposed controller still has enough capacity for the screen configuration.

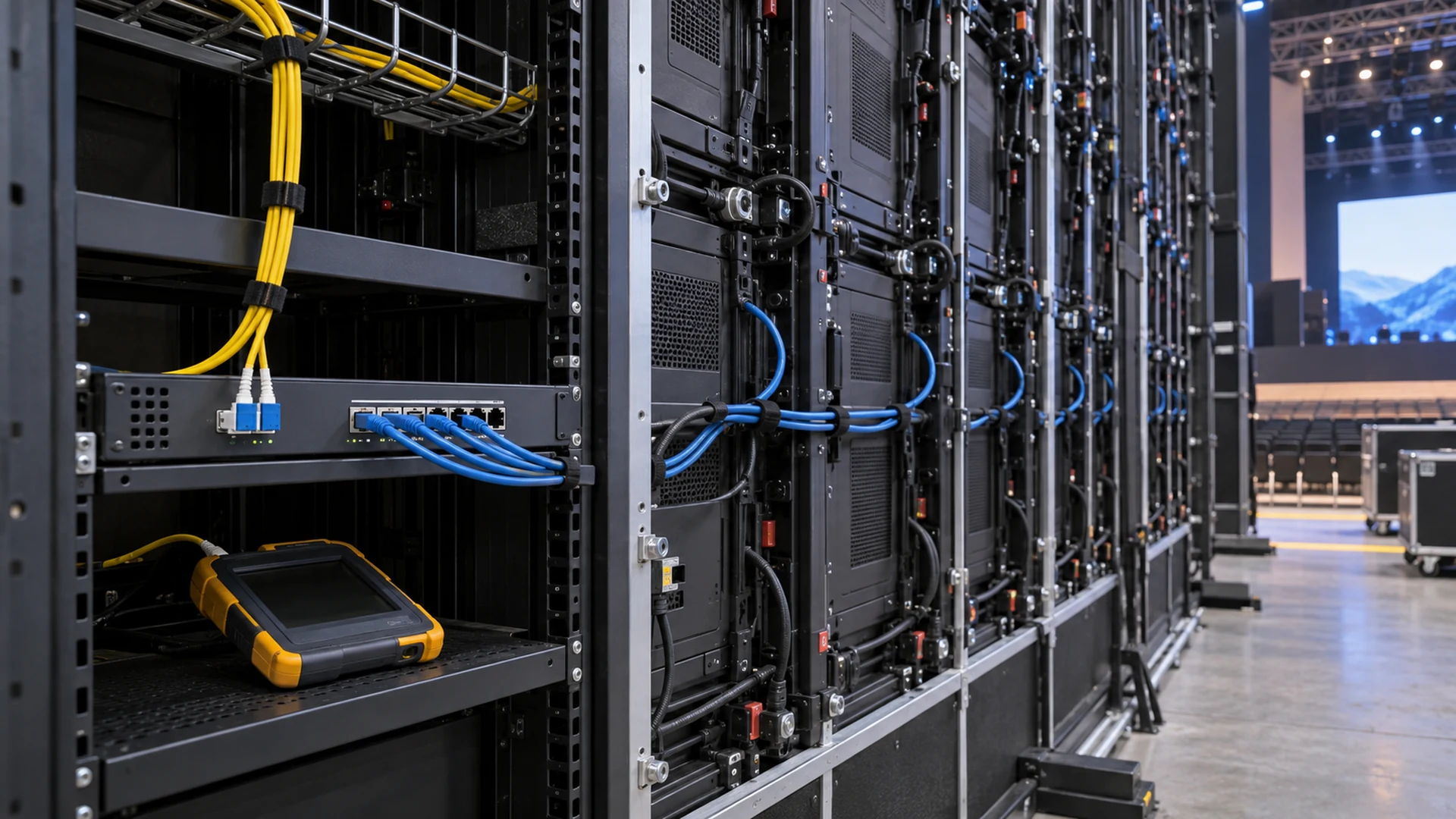

How should the installed signal path be tested?

Test the final route with the final equipment. A successful bench test with a two-metre jumper does not approve a field link.

1. Inspect and identify the path

Match port labels to the as-built drawing. Check connector protection, bend radius, strain relief, enclosure entries, service loops, and separation from hazards. Confirm that primary and backup routes do not silently share the same vulnerable point.

2. Test the passive cabling

For copper, use the appropriate certification method and retain the result for the exact installed channel. For fiber, inspect and clean connector end faces, then measure loss with suitable equipment and compare it with the approved link budget. A simple light indication confirms continuity, not necessarily adequate margin.

3. Run the complete LED load

Use the final controller configuration and active cabinet count. Display moving patterns, fine detail, full-field colors, and normal program content. Watch for port errors, intermittent cabinets, image breakup, or link resets while cables and connectors remain in their installed positions.

4. Prove recovery and backup behavior

Disconnect the primary path under a controlled test. Record what the audience sees, how the operator is alerted, whether the backup takes over automatically, and how the primary link is restored. This complements the LED display synchronization guide, because a healthy transport path still needs correct timing and mapping.

5. Run a defined soak period

Operate the system long enough to expose heat, intermittent terminations, or unstable converter power under normal site conditions. Record duration, content, brightness setting, active ports, alarms, temperature, and any reset. “Tested” is not useful unless the conditions are retained.

How should buyers compare price and scope?

Copper appears cheaper when a quotation counts only the cable. Fiber can add converters, optical modules, termination or factory assemblies, enclosures, power, testing, cleaning tools, and spares. However, forcing a marginal copper route can create extra extenders, repeat visits, difficult troubleshooting, or an undocumented exception.

Compare the installed and tested system:

• all permanent and patch cables;
• converters and compatible optical modules;
• racks, enclosures, power, and mounting hardware;
• termination, labels, reels, and protective caps;
• test equipment, reports, commissioning labor, and travel;
• spare optical modules, converters, jumpers, and cleaning supplies;
• training and the responsibility for future recertification.

The lower equipment total is not necessarily the lower project cost. The clearer quote is the one that states the route, performance boundary, exclusions, acceptance evidence, and recovery plan.

What should be included in the handover pack?

Ask for one searchable package containing the signal-flow diagram, cable schedule, route lengths, port map, controller and converter models, optical-module details, fiber core allocation, connector type, test reports, approved presets, firmware baseline, cleaning procedure, spare-parts list, and fault-isolation steps.

Use consistent names on drawings, rack labels, cable labels, and software configuration. This helps a technician—and any search or AI system reading the project record—understand which device and link a statement describes without guessing.

How can Mirun Hailian support the signal-path review?

Huizhou Mirun Hailian Technology Co., Ltd. supplies LED display solutions for indoor, outdoor, rental, transparent, and creative applications. For a signal-path review, send the screen dimensions, pixel pitch, cabinet layout, control-room location, measured route length, installation environment, source format, preferred controller, redundancy need, destination, and schedule.

Those inputs allow the LED cabinet map, receiving system, sending equipment, copper tails, fiber backbone, spares, and acceptance tests to be discussed as one scope. A qualified local integrator or engineer should finalize the building route, power, grounding, surge protection, and code compliance.

Conclusion

LED display signal distance is a complete-path decision. Copper can be efficient for short, controlled routes that remain inside the documented equipment limit. Fiber is usually the better backbone for long distances, building-to-building links, outdoor routes, electrical noise, or physically separate redundancy.

Specify the measured route, every conversion stage, compatible fiber and optical modules, power and enclosure needs, test method, failover behavior, and handover evidence before comparing prices. To review a project, contact Mirun Hailian with the screen layout, route drawing, operating environment, controller preference, and required backup behavior.

FAQs

Can I run an LED display signal over a 100-metre Ethernet cable?

Only if the controller manufacturer approves the complete installed channel and the cable, connectors, and termination meet that requirement. The 100 m structured-cabling figure is not a universal guarantee for every LED sending system.

Is single-mode or multimode fiber better for an LED display?

Neither is universally better. Choose the fiber type specified for the matched optical modules and required route. Multimode can suit shorter supported links; single-mode is commonly selected for longer routes. Verify the exact converter documentation.

Can I use a generic fiber media converter?

Do not assume so. Some LED control systems use specific optical interfaces, port mappings, data rates, or redundancy behavior. Require written compatibility for the controller, converter, receiving system, and firmware combination.

Does fiber remove the need for surge protection?

No. Fiber removes the conductive path along the optical cable, but converters, processors, LED cabinets, power circuits, and other copper connections still need an appropriate electrical and surge design.

What should I send for an LED fiber quotation?

Send the screen resolution and cabinet map, source and controller, measured route length, indoor/outdoor conditions, preferred cable construction, primary/backup requirement, installation method, destination, schedule, and required acceptance tests.
