LED Wall Text Readability: A Buyer Acceptance Guide

An LED wall can make a presentation look impressive while leaving the last row unable to read the figures that matter. Buyers often see a bright video demonstration, then discover that their own schedules, dashboard labels or meeting slides are much harder to use. LED wall text readability should therefore be agreed against the content and viewing positions your project actually needs.

To assess it, select the smallest essential information, show it through the planned playback system in every required layout, and ask representative users to complete a reading task from the agreed seats under normal lighting. Record the result and settings. Screen dimensions, pixel pitch and resolution help shape the design, but the acceptance question is whether people can use the displayed information.

Start with the decision the viewer must make

A visitor recognizing a welcome message has a different task from an operator reading a small equipment identifier. A training audience may need to follow a diagram annotation; a meeting participant may need to distinguish a decimal point in a table. Identify these tasks before choosing a minimum text size or accepting a demonstration file.

Ask the content owner to mark three to five examples of essential information in real files. Include the most demanding normal content, such as a long room name, a table heading, a unit beside a number or a chart legend. Remove confidential data before sharing samples, while preserving the actual typography, spacing and layout.

Agree which viewing positions must support each task. Mark the farthest seat, a side seat and any position with a different sightline. Record whether viewers are seated, standing or moving past the screen. If some content is intended only for nearby staff, document that boundary so a close-reading requirement does not accidentally become a promise for the entire room.

Connect the room plan to the smallest content element

AVIXA’s Display Image Size for 2D Content overview bases image size and relative viewing positions on user needs. This provides a useful design starting point: give the integrator both the room drawing and the reading task. Ask them to state the design method, assumptions and applicable standard edition when a formal standard is included in the specification.

The buyer still needs to approve the content assumption behind that design. A calculation prepared for large presentation headings may not describe a spreadsheet shown in a small window. When the intended use changes, return to the display-size and layout decision. Keep the LED display resolution plan with the content samples so the physical image size and available pixels remain connected.

Avoid treating a font’s point size as a complete installation requirement. It does not, by itself, describe the physical height of the visible letters after the application, source output and processor have scaled the image. Specify the file, application view or export, window layout and screen area used for acceptance. That gives both parties something reproducible.

Why split-screen layouts need their own approval

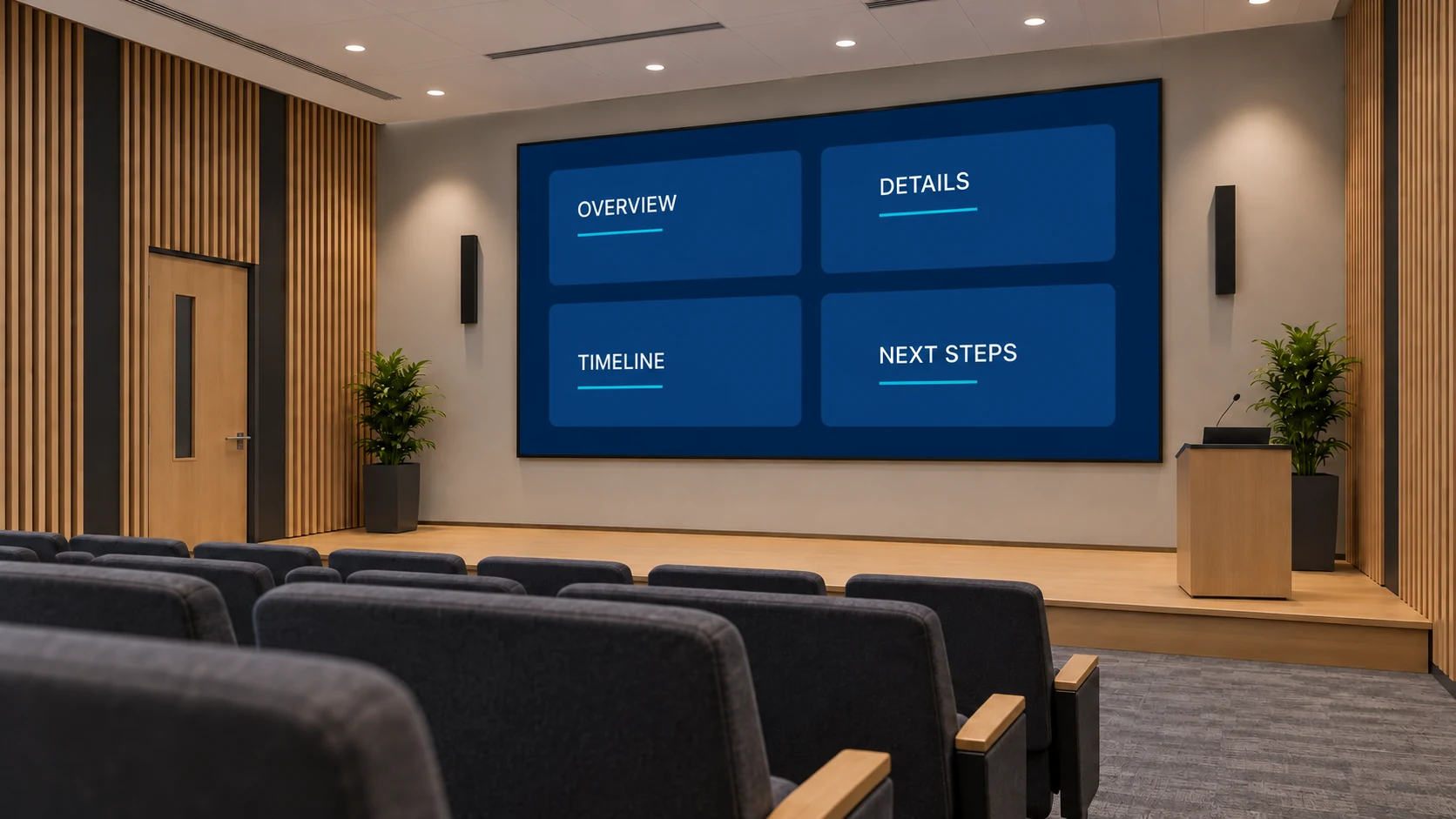

A source that fills the wall during a sales demonstration may occupy only one quarter of it during a meeting. The content has less physical space in which to appear. Ask for the smallest normal window size to be demonstrated, including any borders, persistent banners or other reserved areas that reduce the usable image.

Consider a simple geometric example. A letter whose visible height is 24 pixels in a 1,080-pixel-high source image would occupy 60 mm when that image is scaled uniformly to a displayed height of 2,700 mm: 24 ÷ 1,080 × 2,700 = 60. If the same complete image is fitted into a window half that height, the letter becomes 30 mm high.

Those figures illustrate scaling only; neither size is a universal readability threshold. The example assumes uniform scaling, no cropping and the same source content. It also uses the visible letter height, not a nominal font-size setting. The practical consequence is that a full-screen approval cannot automatically approve the same file in a smaller window.

Decide whether each operating mode needs a dedicated template. A dashboard may work better as a summary on the wall with detailed inspection on a local workstation. A meeting layout may need a one-button way to enlarge the active document. Agree these choices before the processor layouts and content handover files are finalized.

Bring a small acceptance pack, then test the full path

Prepare a short set of files that the supplier and integrator can keep with the project record. Include a normal slide, a demanding table or dashboard, and a sample of the languages actually used. Preserve punctuation, units, thin strokes and similar-looking characters where they matter to the task. These details help reveal problems that a colorful video loop will not exercise.

Run that pack through the intended source device, application, connection, processor and display configuration. Record source resolution, application zoom, processor preset and any scaling. A file viewed directly on a laptop is useful for content review, but it does not establish how the installed playback path will display it. Test the path that the operator will select in daily use.

Turn “looks clear” into a specific observation. For example, ask a participant at the rear seat to read an identifier and its unit, or to select the next item in a schedule. Agree the required accuracy and, where relevant, time available for the task before testing. Use representative users and varied sample values so familiarity with the answer does not hide a reading difficulty.

This is a suggested project acceptance record, not a standardized vision test or proof of accessibility for every viewer. If the project specifies formal performance or accessibility requirements, have the responsible specialist define the applicable assessment. Keep that requirement separate from the practical reading exercise so neither is silently substituted for the other.

Check source contrast and the room separately

Text and background choices deserve review before the on-site demonstration. The W3C explanation of WCAG text contrast describes contrast requirements for web content and notes that thin letter strokes and anti-aliasing can weaken apparent contrast. Its guidance is useful when reviewing a web dashboard, but a source-color calculation does not establish readability on an installed LED wall.

Ask the designer to supply a version with clearly separated text and background tones and enough stroke weight for the intended presentation. Test the actual fonts and languages. If branding requires text over an image, include a representative busy background in the acceptance pack. A plain title slide should not stand in for every content style the buyer expects to use.

AVIXA’s Image System Contrast Ratio overview treats the display, sources, signal distribution and environment as a system. Its measurement context includes typical operating conditions and ambient light. For procurement, this supports requesting an assessment in the room’s normal lighting state, with the planned playback chain, and identifying any additional formal measurement work in the integrator’s scope.

A room used for note-taking may keep more lights on than a demonstration room. A lobby may have changing daylight. List the operating scenes that matter and agree how they will be represented at acceptance. Coordinate this with the LED wall black-level and contrast review. Record an approved display preset for each necessary scene instead of leaving the operator to guess later.

Walk the approved viewing positions

Begin at the positions marked on the drawing and use the normal viewing posture. Look for both reading errors and physical obstructions: another person’s head, furniture, a lectern or a screen area hidden from one side. An empty-room inspection cannot fully represent an occupied seating arrangement. Where relevant, include representative occupancy during the site check.

The side-seat assessment should use the same critical content and operating mode as the central seat. The LED display viewing-angle guide can help structure the related specification discussion, but the acceptance record should identify the actual seats covered. A broad viewing-angle figure does not name the text, layout or task demonstrated from those seats.

Keep a photograph as a record of the setup, alongside the observer’s result. A camera’s exposure, lens and the size at which its photograph is later viewed can change how the screen appears. Use the photograph to document position and conditions; make the reading decision from the agreed on-site exercise and any specified technical measurements.

Assign the remedy before the final sign-off

When a test fails, record which task failed and under which conditions before changing anything. The content designer may need to enlarge a label or reduce information density. The integrator may need to adjust the source, scaling or layout. If the physical image is too small for the required use, the buyer may need to reconsider screen size or viewing positions.

Change one relevant factor at a time where practical, retain the revised file or preset, and repeat the affected tests. A fix that enlarges a dashboard must still show the information the operator needs. Put the accepted versions and any remaining limitations into the LED display commissioning record, with the owner responsible for future content changes.

What to send with a readability-focused RFQ

Send Mirun the available screen dimensions, room drawing, required viewing positions, representative content and planned full-screen or multi-window layouts. Include normal lighting scenes, languages, source equipment and who will approve the reading tasks. Ask for the proposed physical image size and resolution, integration assumptions, demonstration arrangement and included acceptance support.

For an LED display project discussion, attach the smallest essential content example early. It allows the supplier and integrator to respond to a concrete use case. A useful LED wall text readability agreement identifies the task, content version, layout, viewing positions and operating conditions that the buyer will sign off.

Questions buyers often ask

Will a finer pixel pitch automatically make small text readable?

No. Pixel pitch describes spacing between pixels; it does not determine the physical size of the letters in your layout. Review the resolution and rendering, then test the actual content at its intended size from the agreed positions.

Can we approve the wall using a photo or recorded video?

Use photos and video for preparation and documentation. They cannot reproduce every viewer’s direct experience of distance, lighting and content size. Reserve final approval for the agreed site test and any contractual measurements.

Do new presentation templates need another check?

Recheck when a template changes the smallest essential text, contrast, information density or displayed window size. Keep the approved test pack so the operator can compare the revised content under the same conditions.
